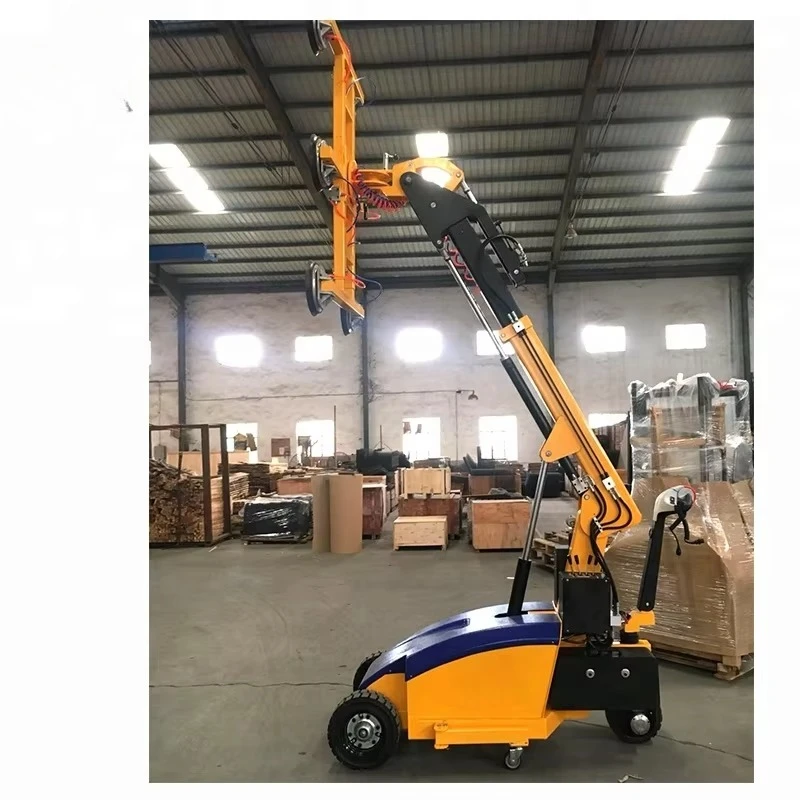

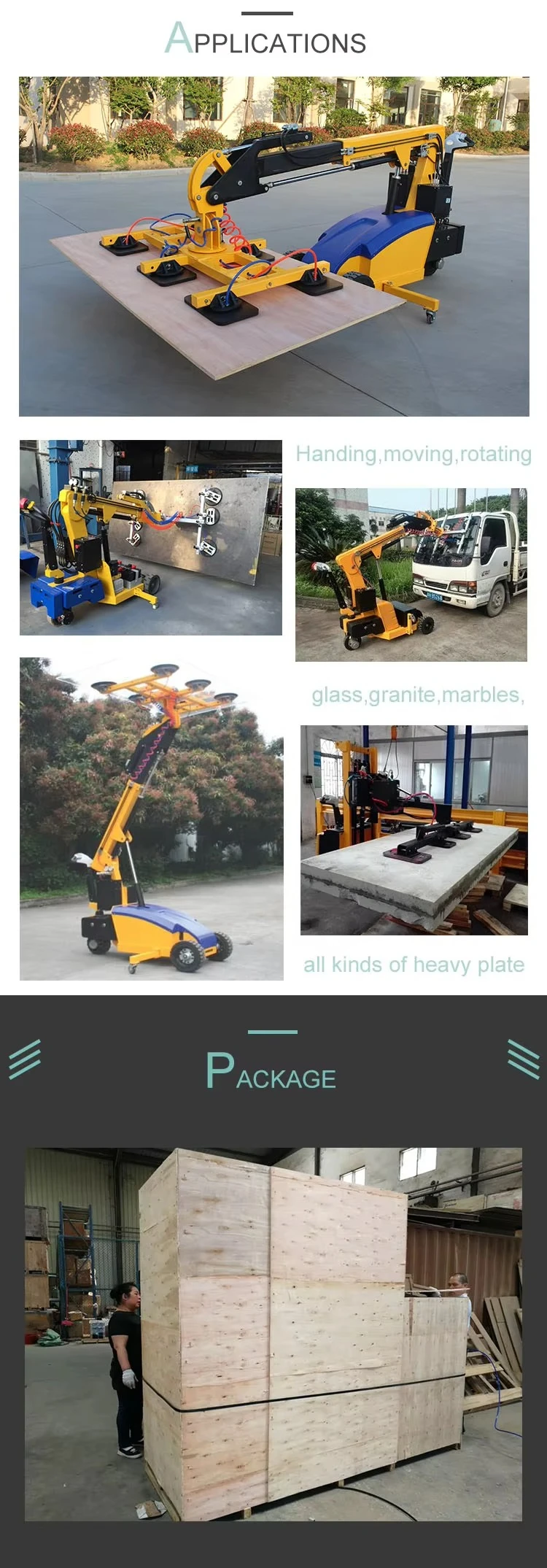

Vacuum Lifter Robot is specially design for handling different kinds of heavy plate, board and glass,

useful for installing steel board, glass wall, moving such as granite, marble.

It is a senior machine with Front-wheel driven, which gave better road holding and friction force while driving with loads.

Moreover, these models improved the controller from manual valves to remote controller,

intuitive interface helped operation easier to find required function, and much helpful to the speed control as well.

An extension model of machine developed for higher lifting.Various options customized for special request as well.

Characteristic customization:

-Constant speed remote controller

-Stepless speed remote controller

-Sponge suction cups for rude surface panels

-Dual wheels,rough terrain wheels,can walk on bad situation road.Strong power, steady lifting and lowering.

Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

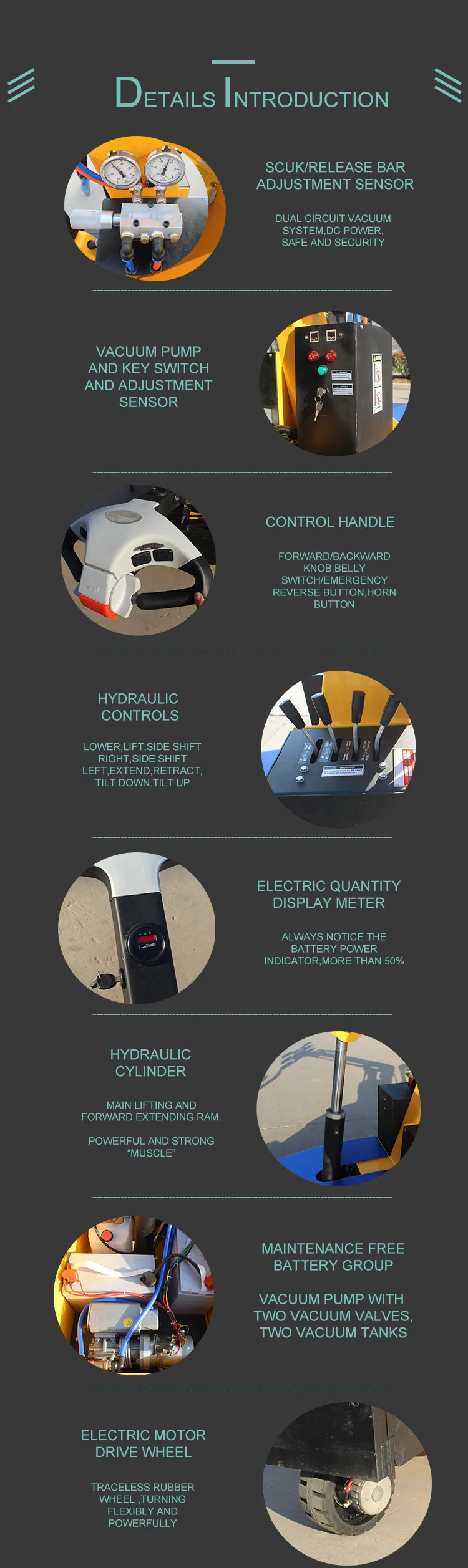

1) Dual Vacuum System. One for normal operation and one as spare system.

2) USA Curtis control system,DC24V reliable actuators for lifting, extension and tipping. efficient and precise.

3) Japan Panasonic and Taiwan Airtac Self-contained air system, and no external air source is required.

4) High quality vacuum pump,heavy duty driving wheel, hydraulic pump,as well as maintenance-free battery.

5) Integrated with pressure auto maintaining system, even if power fails, pressure remains.

6) Independent Air Inlets. Each suction cup can be disabled individually if not all are needed.

7) Self propelling,Strong power, steady lifting and lowering.

8) fine adjustment of position without driving the machine.(See above video)

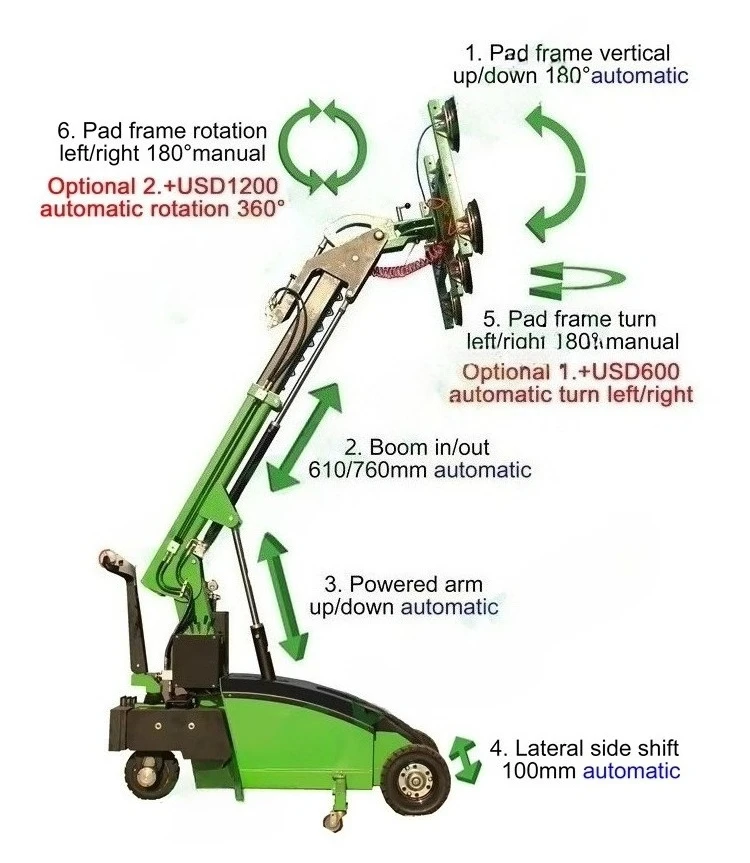

9) Integrated control system secures quick,automatic positioning vertically,horizontally by a single push on a button.

10) Attractive price, staff saving, strong improvement of working environment.
