SPECIFICATIONS

Brand Name: DAWEI

Charging method: Wireless charging

Color Doppler: Yes

Compatible: ios & Android

Connection method: Wifi connection (15 meters)

Host net weight: 120g

Operating mode: B, B/M, CFM, PDI, CFM, PW

Probe: 2-in-1 probe

Probe frequency: 3.2MHz/7.5MHz(adjustable)

Target Pet: Dog & Cat

battery capacity: 1350mAh

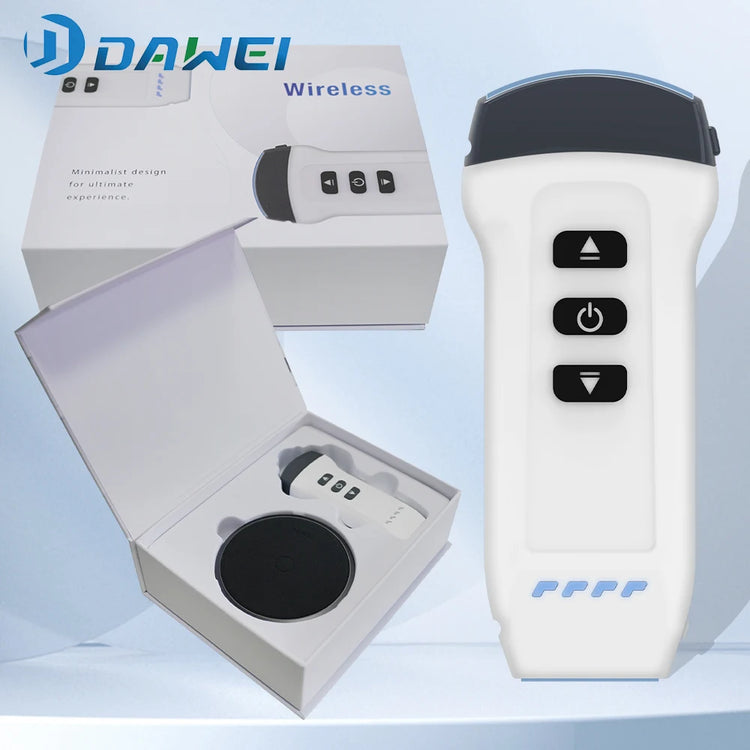

DW-X1 is a veterinary color Doppler scanner that combines 3.2MHz convex and 7.5MHz linear probes into one. You can perform health or pregnancy checks on different animals, such as cats, dogs, pigs, and sheep. and other small and medium-sized animals.

While the handheld design brings portability, it also has color Doppler function. The modes include B, B/M, CFM, PDI, CFM, and PW. It can collect blood flow movement, tissue movement information, and organ tissue imaging, etc.

The main function:

- For pregnant animals

- Master postpartum uterine recovery

- Diagnosis of uterine diseases

- Observe embryonic development

- Estimate the number of babies

- General data measurements

Specification:

- Model: DW-X1

- Color Doppler: Yes

- Adaptation: ios (version 12.3 or above)/Android (version 8.1.0 or above)

- Probe: Dual probe (convex probe/linear probe)

- Probe frequency: 3.2MHz/7.5MHz (adjustable)

- Connection method: Wifi connected to mobile phone/computer (15 meters)

- Power: 1350mAh (continuous operation ≥ 2 hours)

- Charging method: wireless charging

- Display mode: B, B/M, CFM, PDI, CFM, PW

-Puncture assist: In-Plane, Out-Plane

- Depth (mm): 16 levels adjustable

- Video playback: 100/200/500/1000 frames

- Gain range: G30~G105

- PW Gain: 0-100

- Image grayscale: 256 levels

- One-click parameter recovery function

- Host size: 12.3*5.3*2.2cm

- Host net weight: 120g

- Measurement functions: pregnancy test, backfat thickness, distance, circumference, area, volume, angle, heart rate

- Scope of application: Ultrasound examination for various needs in pet hospitals, clinics, zoos, breeding/breeding bases and various scientific research units, etc.

Package Included:

- 1 x wireless probe

- 1 x user manual

- 1 x wireless charger

DAWEI provides the most professional after-sales service and product services. If you have any questions, please feel free to contact us. We will give you perfect technical support and provide two-year free warranty.
